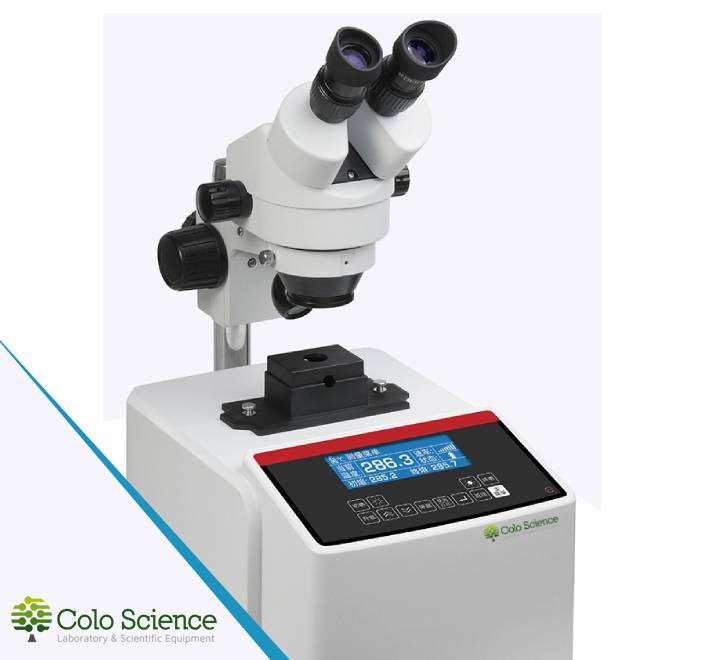

CMPA1 Melting Point Apparatus with Microscope

CMPA1 — Melting Point Apparatus with Microscope Catalog (PDF) Classical capillary method Binocular microscope 40×–100× Ambient 10 to 320 °C 0.1 °C resolution USB & RS232 reporting OVERVIEW The melting point of a substance is the temperature at which it changes from a solid to a liquid state. In organic chemistry and pharmaceutical analysis, melting point determination is a fundamental tool for confirming identity and assessing purity of crystalline substances. Reliable instruments are therefore essential in chemical and pharmaceutical production, research laboratories and education. CMPA1 is a visual melting point apparatus from COLO.Science that combines precise temperature control with direct observation through a binocular microscope. Using classical capillary tubes and cover glasses, it allows the operator to monitor softening, meniscus formation and complete melting, while the digital controller provides stable ramp rates, accurate temperature display and convenient data output via USB and RS232. COLO.SCIENCE KNOWLEDGE Melting point determination in practice Read our COLO.Science article covering melting point principles, pharmacopoeial standards and practical examples with visual and automatic instruments. Read on COLO.Science → TYPICAL APPLICATIONS Identification and purity testing of organic crystalline compounds Quality control in pharmaceutical and fine chemicals production Development and comparison of APIs and intermediates Routine QC in chemical and materials laboratories Teaching of melting point principles in universities and colleges Characterisation of fragrances, flavours and specialty chemicals MODELS & DIMENSIONS Model Observation Temperature range Dimensions / weight CMPA1 Binocular microscope 40×–100× Ambient 10 °C to 320 °C 400 × 245 × 550 mm / approx. 8 kg TECHNICAL SPECIFICATIONS Model CMPA1 Melting Point Apparatus with Microscope Measurement principle Classical capillary tube method with visual observation through binocular microscope Observation Binocular microscope, magnification 40×–100×; assistant observation via cover glass Capillaries & sample preparation Outer diameter 1.4 mm, inner diameter 1.0 mm, length 90 mm; fill height 3–5 mm; cover glass 18 × 18 × 0.17 mm Number of capillaries 1 capillary per measurement Display & operation 4.3″ LCD display with membrane keyboard; digital temperature indication and parameter setting Interfaces USB (data export) and RS232 (printer connection) Ramp rates Selectable 1 / 3 / 5 / 10 °C/min and fast heating mode Heating / cooling time Room temperature to maximum in ≤ 8 min; cooling from maximum back to room temperature in ≤ 8 min Power supply AC 110/220 V ±10%, 50/60 Hz, approx. 100 W STANDARD DELIVERY & ACCESSORIES CMPA1 melting point apparatus with binocular microscope Power cable Basic user manual / quick start guide Starter kit of capillary tubes and cover glasses* USB cable for data export* RS232 cable for external printer* Optional: external printer for hard-copy reports Optional: additional capillary tubes and consumables *Exact contents as per current catalog and order confirmation. MAIN TECHNICAL PARAMETERS Temperature range Ambient 10 °C to 320 °C Temperature resolution 0.1 °C Temperature accuracy ±0.8 °C (< 200 °C); ±1.0 °C (≥ 200 °C) Ramp rate error ≤ 10 % Reproducibility ≤ 0.5 °C at 1 °C/min Power supply AC 110/220 V ±10 %, 50/60 Hz, 100 W Dimensions (L × W × H) / weight 400 × 245 × 550 mm / approx. 8 kg SKU: PRO6270, PRO6271 Category: Laboratory instruments Melting Point
